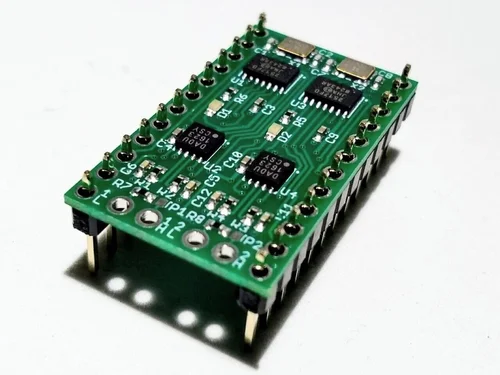

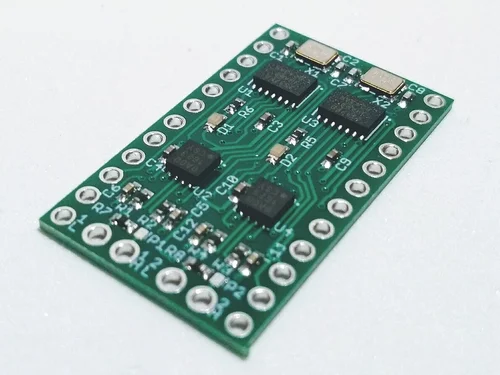

Arduino CAN FD Shield

Upgrade your Arduino Pro Mini/Micro with CAN FD

Key features:

• Dual independent CAN FD channels (CAN1 and CAN2)

• Optional 120 ohm termination resistors available for CAN1 and CAN2 via solder jumpers

• Two 40 MHz system clocks

• SPI clock rate up to 20 MHz

• Supports CAN FD and classic CAN operation

• Supports industry standard bit times 125 kbps, 250 kbps and 500 kbps and any custom bit times up to 1 Mbps

  • Supports flexible data rates up to 4 Mbps
    (operating mode, message, and network configuration dependent)
